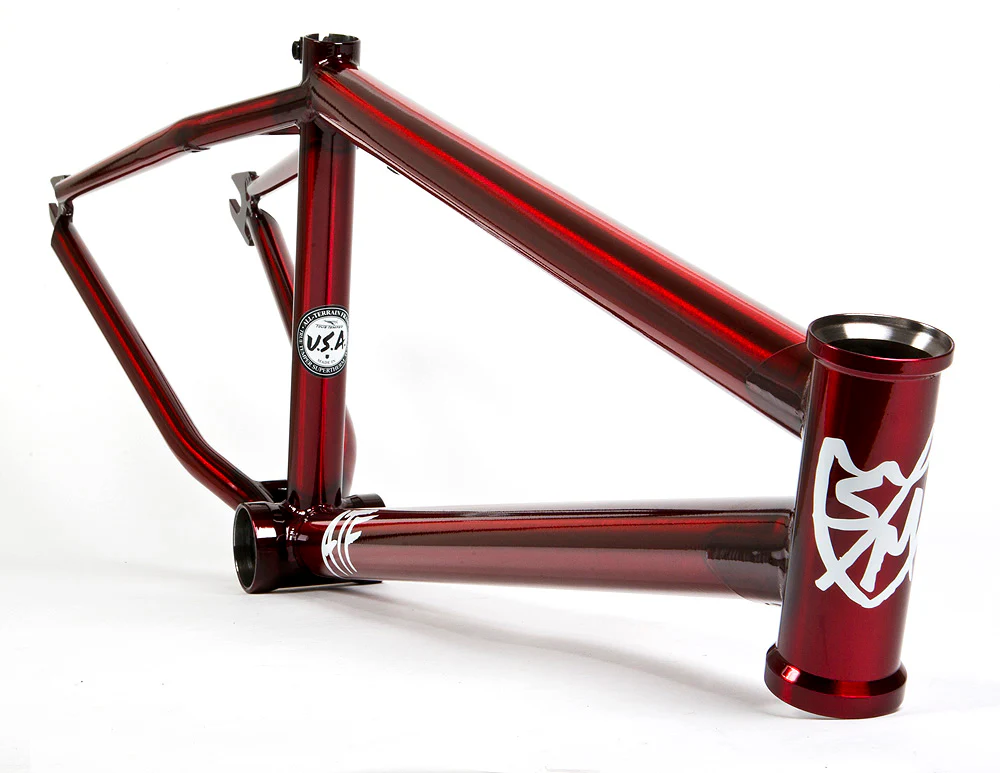

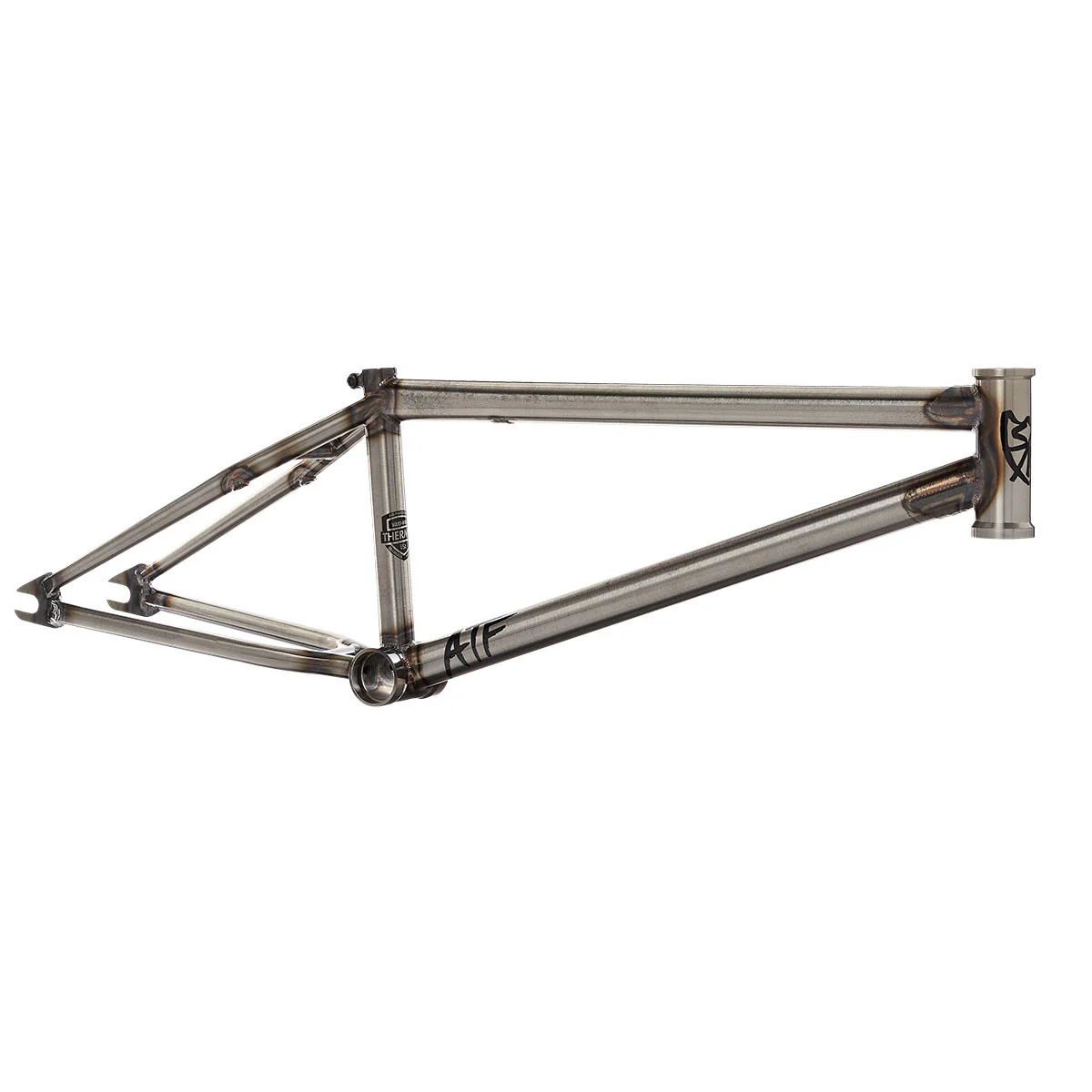

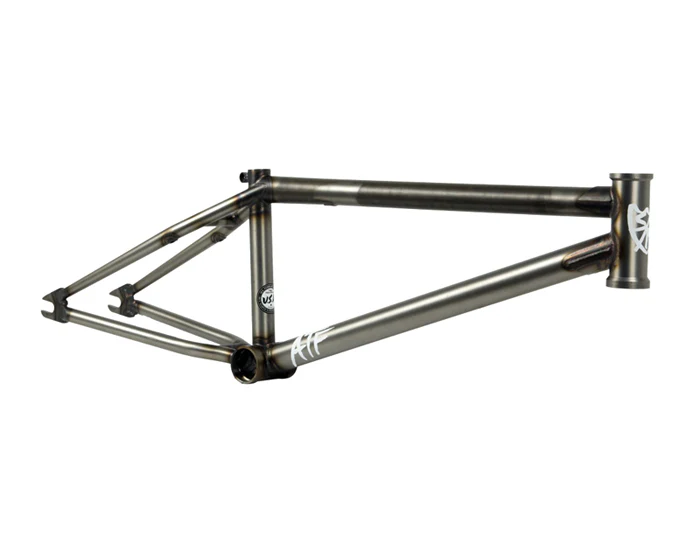

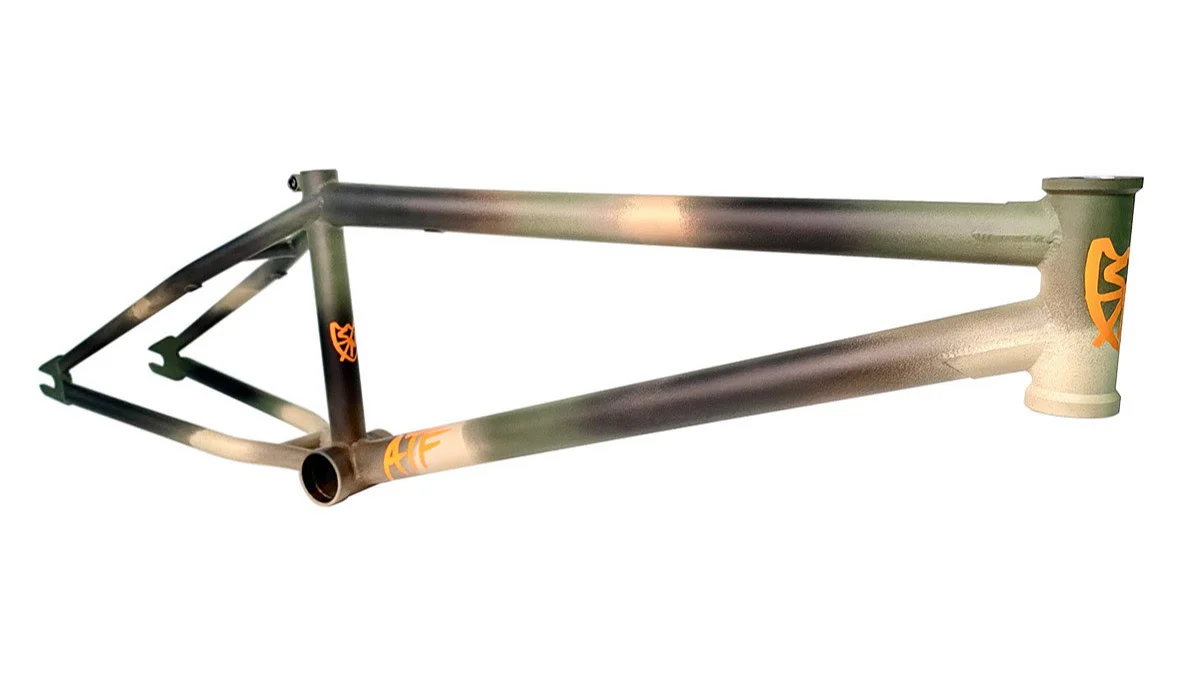

S&M ATF 20" BMX Frame
S&M ATF 20" BMX Frame
The ATF bmx frame from S&M is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco and firearms) uses S&M's standard heat treated supertherm tube set with a tapered and butted top tube, dent resistant down tube, tapered rear stays with massive rear tyre clearance and heat treated micro dropouts. S&M says the frame is a bit burlier and stronger than most of their frames but still only weights in a 4.7lbs.
Specs:
- Headtube angle: 75°
- Seattube angle: 71°
- Rear end length: 13.4"-13.75"
- BB height: 11.7"
- Standover Height: 8.5"
- Dropout size: 14mm
- Headset type: Integrated
- BB Type: Mid
- Brake Mounts: Removable
- Gyro Tabs: N/A
- Weight: 4.7lbs
Original: $837.72
-65%$837.72
$293.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
S&M ATF 20" BMX Frame
The ATF bmx frame from S&M is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco and firearms) uses S&M's standard heat treated supertherm tube set with a tapered and butted top tube, dent resistant down tube, tapered rear stays with massive rear tyre clearance and heat treated micro dropouts. S&M says the frame is a bit burlier and stronger than most of their frames but still only weights in a 4.7lbs.
Specs:
- Headtube angle: 75°
- Seattube angle: 71°
- Rear end length: 13.4"-13.75"
- BB height: 11.7"
- Standover Height: 8.5"
- Dropout size: 14mm
- Headset type: Integrated
- BB Type: Mid
- Brake Mounts: Removable
- Gyro Tabs: N/A
- Weight: 4.7lbs
