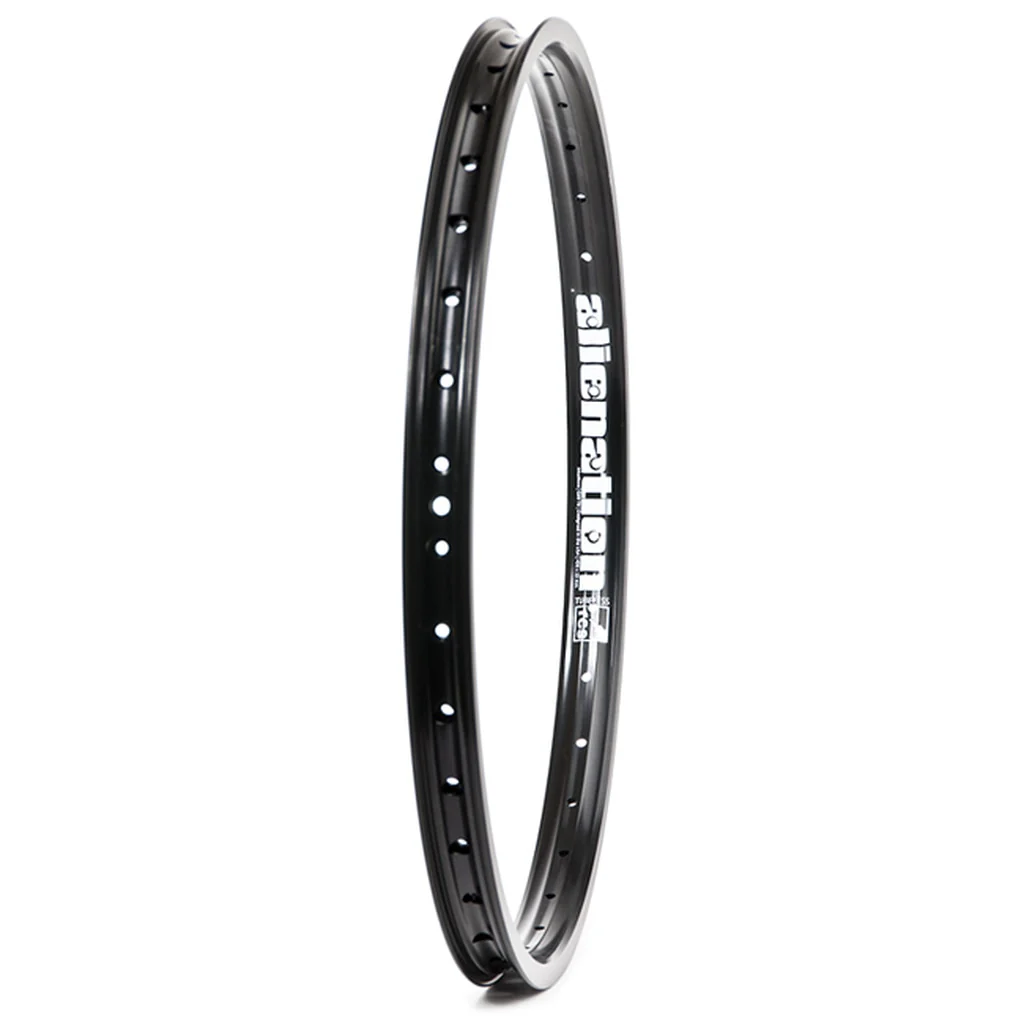

Alienation Malice 24" BMX Rim - Black
The Alienation TCS Malice features a tubeless compatible extrusion that uses an advanced 4D drilling pattern specific to small diameter BMX rims. Alienation's 4D drilling process optimizes the interface between spoke and rim to eliminate many of the spoke line problems common to BMX builds. Employing an I-Beam cross section provides vertical support to counteract spoke loads and improve torsional rigidity.
Alienation uses a G69 alloy material to optimize the strength to weight ratio of their rims. Radial lacing is not permitted on these rims, which are designed and drilled specifically for 3 cross lacing. Each TCS Malice rim comes with a valve plug for the unused valve hole (TCS Malice rim drilled for both tubeless Presta and Schrader valves).
The Malice is intended for rim brake rear wheel use.
24" RIM:
- Diameter: 24" (507mm)
- Weight: 437g
- Width: 28.5mm
- Internal width: 23mm
- Hole counts: 36
- Valve: Schrader & Presta
- Colors: Black, blue, gold, red
- Tubeless compatible: Yes
- Material: Aluminum 6069 T6 (30% stronger than 6061 T6)
- Construction: Double walled, Sleeve joint welded
- Brake Compatibility: Rim brake
- Effective Rim Diameter (ERD): 495
- Ideal use: BMX race rear wheel
Original: $138.71
-65%$138.71
$48.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Alienation TCS Malice features a tubeless compatible extrusion that uses an advanced 4D drilling pattern specific to small diameter BMX rims. Alienation's 4D drilling process optimizes the interface between spoke and rim to eliminate many of the spoke line problems common to BMX builds. Employing an I-Beam cross section provides vertical support to counteract spoke loads and improve torsional rigidity.
Alienation uses a G69 alloy material to optimize the strength to weight ratio of their rims. Radial lacing is not permitted on these rims, which are designed and drilled specifically for 3 cross lacing. Each TCS Malice rim comes with a valve plug for the unused valve hole (TCS Malice rim drilled for both tubeless Presta and Schrader valves).
The Malice is intended for rim brake rear wheel use.
24" RIM:
- Diameter: 24" (507mm)
- Weight: 437g
- Width: 28.5mm
- Internal width: 23mm
- Hole counts: 36
- Valve: Schrader & Presta
- Colors: Black, blue, gold, red
- Tubeless compatible: Yes
- Material: Aluminum 6069 T6 (30% stronger than 6061 T6)
- Construction: Double walled, Sleeve joint welded
- Brake Compatibility: Rim brake
- Effective Rim Diameter (ERD): 495
- Ideal use: BMX race rear wheel
